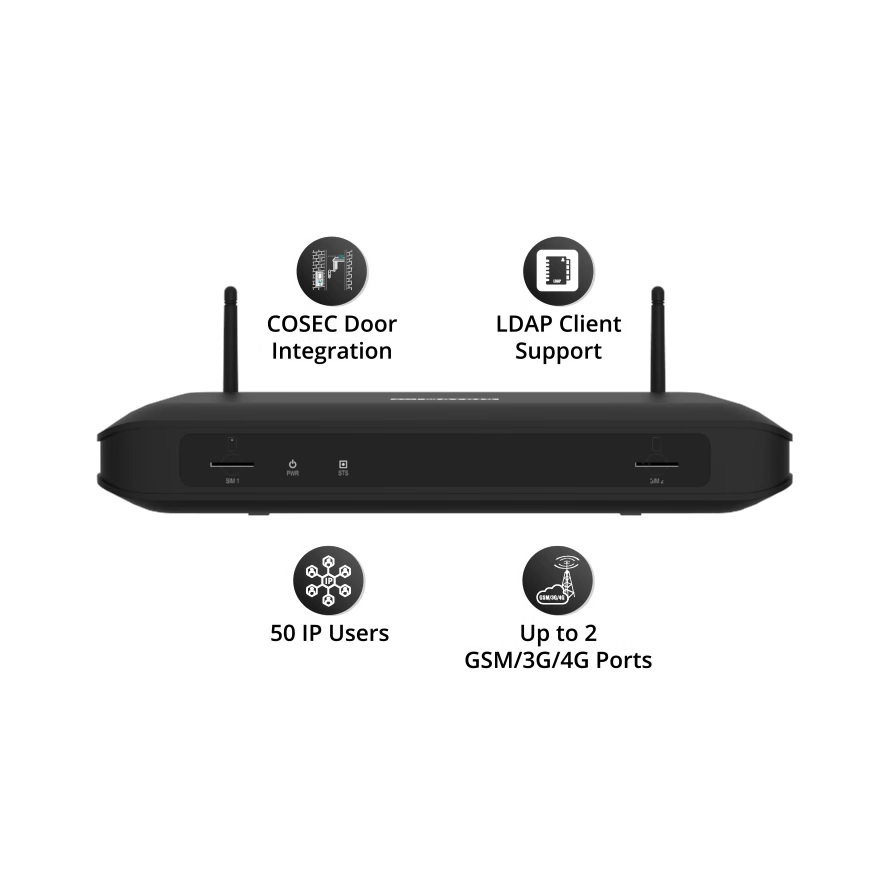

ETERNITY NENX
- Up to 4 FXO (CO) Ports, 16 FXS (SLT) Ports
- 2 GSM/3G/4G Ports
- IP PBX with up to 50 IP Users
- Flexible User Management
- PSTN Connectivity
- SIP Trunk Support
- PRI (Primary Rate Interface) Connectivity
- GSM/3G/4G Network Integration
- VoIP (Voice over Internet Protocol) Compatibility
- Elimination of Multiple Investments
Features
- 50 IP Users
- Detailed Records of 12000 Calls
- 2 GSM/3G/4G Ports
- Scheduled Backup
- Auto Attendant
- COSEC Integration
- Dynamic DNS
- Multilingual IVR
- Automatic DISA
Specifications
| FXO Ports (CO) | 3 |
| FXS Ports (SLT) | 12 |
| GSM/3G Ports | 2 |
| IP Users | 50 |
| VoIP Trunks (SIP) | 8 |
| Max. VoIP CHNL | 8 |
| Max. VMS CHNL | 4 |
| Max. IP to IP Call | 25 |
| Max. IP to TDM Call | 8 |
| Conference | 6 party |
| Video Calls | 8 |
| VoIP Protocol | SIP, SDP, RTP, SRTP |
| Network Protocol | IPv6, IPv4, TCP, UDP, DHCP, VLAN, DynDNS, PPPoE, QoS, STUN |
| Transport Protocol | UDP, TCP, TLS |
| Codec | G.711(A-law, μ-law), G.723, G.729AB, GSM-FR, iLBC |
| DTMF | RTP (RFC2833), SIP Info, IN-Band |
| LAN | 1 × 10/100 Mbps |
| Voicemail | Yes |
| T.38 Fax | Yes |
| Max. External Storage | 32GB |
| USB | 1 (With Factory fitted 8 GB Pen-drive) |
| Power | 24VDC 2.5Amp |
| Size | 320.2 x 51.1 x 208.1 mm |
| Power Consumption | 15W |
| Environment | Operation Range: 0°C to 45°C, Storage Range: -20°C to 65°C, Operating Humidity: 5-95% RH Non-Condensing |
| Mounting | 1U Rack Mounting |
